WILO A RATED PUMP WITH MIXING VALVE

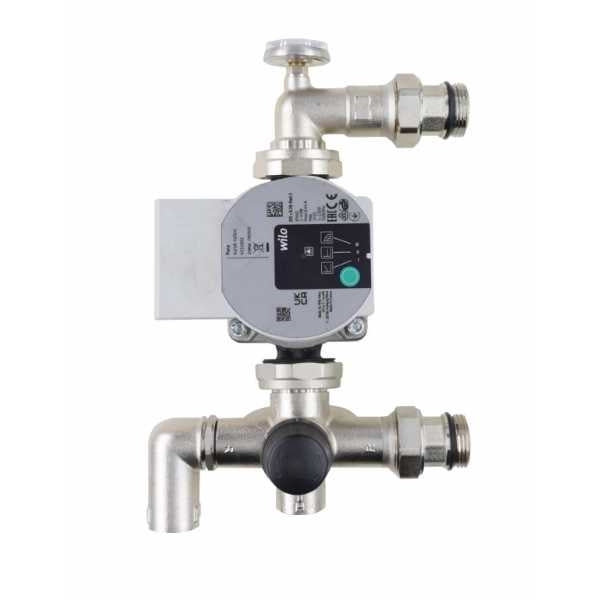

TEMPERATURE BLENDING VALVE WITH WILO PUMP

THE TEMPERATURE BLENDING VALVE WITH WILO PUMP IS A PRE-ASSEMBLED MIXING UNIT DESIGNED FOR EFFICIENT AND RELIABLE UNDERFLOOR HEATING SYSTEMS. COMBINING A THERMOSTATIC BLENDING VALVE WITH A HIGH-EFFICIENCY WILO A-RATED CIRCULATOR PUMP, IT PROVIDES ACCURATE MIXED WATER TEMPERATURE CONTROL BETWEEN 20°C AND 55°C, ENSURING SAFE, EVEN HEAT DISTRIBUTION WHILE PROTECTING FLOORS AND PIPEWORK FROM OVERHEATING.

IDEAL FOR MULTI-ZONE DOMESTIC INSTALLATIONS, THE UNIT DELIVERS QUIET OPERATION, LOW ENERGY CONSUMPTION, AND COMPLIANCE WITH BS EN 1264 WARM-UP REQUIREMENTS.

KEY FEATURES

• ADJUSTABLE FLOW TEMPERATURE RANGE FROM 20°C–55°C
• ACCURATE TEMPERATURE CONTROL WITH ±3°C STABILITY
• 20°C MINIMUM SETTING FOR BS EN 1264 COMPLIANCE
• HIGH-FLOW 3.4 KVS PERFORMANCE FOR IMPROVED CIRCULATION AND REDUCED PRESSURE LOSS
• COMPACT DESIGN WITH INTEGRATED MIXED-FLOW TEMPERATURE GAUGE
• QUICK MANIFOLD CONNECTION WITH SPINNING NUTS
• BUILT-IN CHECK VALVE FOR EASY FILLING AND COMMISSIONING
• SELF-SEALING CONNECTIONS TO MINIMISE LEAK RISK
• HIGH-EFFICIENCY WILO A-RATED PUMP WITH VARIABLE AND CONSTANT PRESSURE MODES, QUIET OPERATION, AND ENERGY SAVINGS OF UP TO 80% COMPARED WITH CONVENTIONAL PUMPS

INSTALLATION & BENEFITS

THE UNIT CAN BE INSTALLED IN LEFT- OR RIGHT-HAND CONFIGURATIONS WITH TOP OR SIDE PIPE ENTRY OPTIONS FOR GREATER INSTALLATION FLEXIBILITY. THE TEMPERATURE GAUGE CAN ALSO BE REPLACED WITH AN OPTIONAL HIGH-LIMIT SENSOR WHEN REQUIRED.

SUPPLIED FULLY ASSEMBLED AND PRESSURE-TESTED IN THE UK, IT DELIVERS RELIABLE PERFORMANCE, LOWER RUNNING COSTS, AND LONG SERVICE LIFE, SUPPORTED BY UK TECHNICAL ASSISTANCE.
