UNDERFLOOR HEATING TEMPRATURE MIXING VALVE

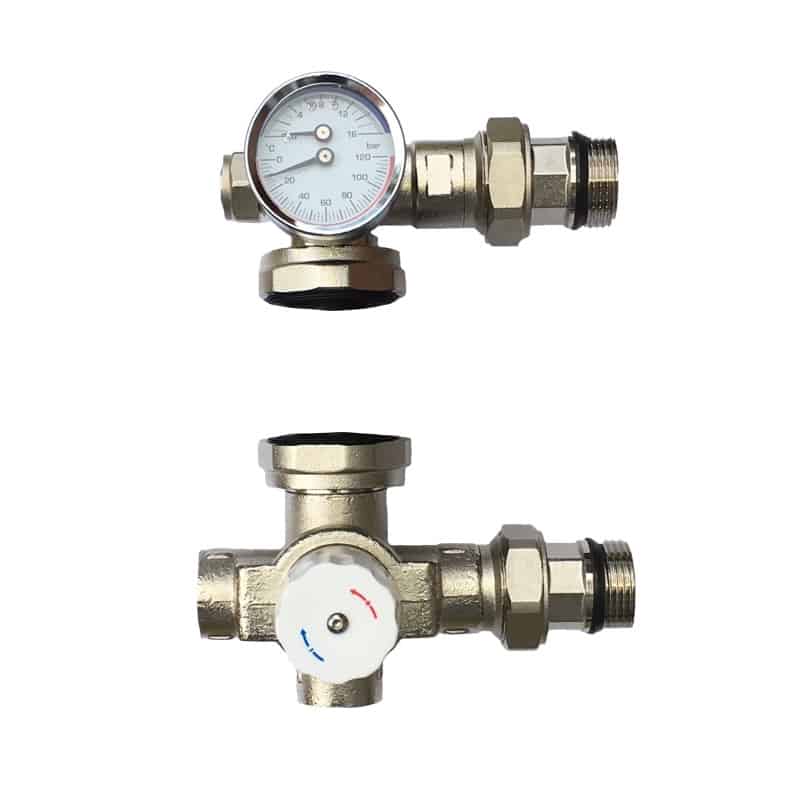

THERMOSTATIC MIXING VALVE FOR UNDERFLOOR HEATING MANIFOLDS

THIS COMPACT, LIGHTWEIGHT THERMOSTATIC MIXING VALVE IS DESIGNED FOR DIRECT CONNECTION TO UNDERFLOOR HEATING MANIFOLDS. SUPPLIED FULLY ASSEMBLED IN A LEFT-HAND CONFIGURATION, IT INCLUDES G1 MALE SWIVEL FLAT SEAL UNIONS FOR QUICK AND SECURE INSTALLATION.

THE UNION CONNECTION DESIGN ENABLES SIMPLE MANIFOLD FITTING WITHOUT THE NEED FOR ADDITIONAL SUPPORT BRACKETS, REDUCING INSTALLATION TIME AND ELIMINATING THE NEED FOR DRILLING OR EXTRA FIXINGS.

THE VALVE PROVIDES ACCURATE UNDERFLOOR HEATING TEMPERATURE CONTROL WITH AN ADJUSTABLE FLOW TEMPERATURE RANGE OF 35°C TO 65°C. IT IS COMPATIBLE WITH A WIDE RANGE OF HEAT SOURCES, INCLUDING GAS AND OIL BOILERS, WOOD-BURNING STOVES, SOLAR THERMAL SYSTEMS, AND AIR OR GROUND SOURCE HEAT PUMPS.

TEMPERATURE ADJUSTMENT

THE THERMOSTATIC BLENDING VALVE IS FACTORY SET TO DELIVER MIXED WATER AT 45°C TO THE UNDERFLOOR HEATING MANIFOLD. THE TEMPERATURE CAN BE ADJUSTED BETWEEN 35°C AND 65°C USING THE CONTROL KNOB:

• TURN CLOCKWISE TO INCREASE THE FLOW TEMPERATURE.
• TURN ANTI-CLOCKWISE TO DECREASE THE FLOW TEMPERATURE.
