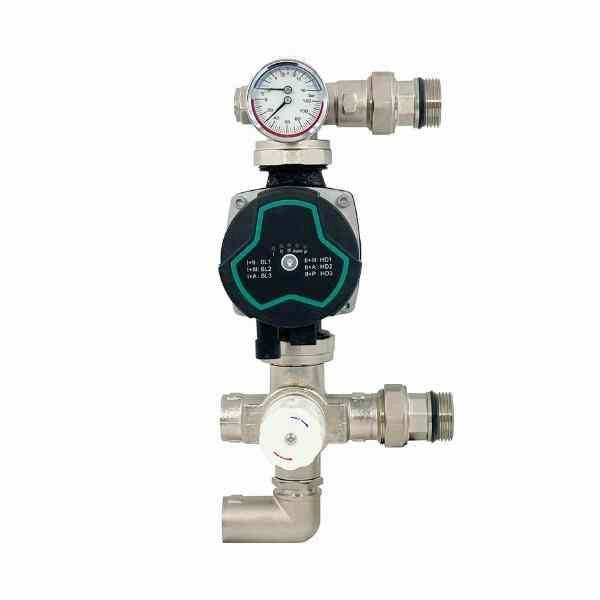

STANARD A RATED PUMP 7.5M HEAD WITH MIXING VALVE

UNDERFLOOR HEATING BLENDING VALVE WITH STANDARD 7.5M PUMP

THE UNDERFLOOR HEATING BLENDING VALVE WITH STANDARD 7.5M PUMP PROVIDES PRECISE TEMPERATURE CONTROL AND EFFICIENT WATER CIRCULATION FOR WET UNDERFLOOR HEATING SYSTEMS. SUPPLIED AS A FULLY ASSEMBLED LEFT-HAND UNIT, IT CONNECTS DIRECTLY TO COMPATIBLE MANIFOLDS USING G1 MALE SWIVEL FLAT SEAL UNIONS, REMOVING THE NEED FOR ADDITIONAL BRACKETS OR FIXINGS.

THE INTEGRATED THERMOSTATIC BLENDING VALVE ALLOWS ADJUSTABLE FLOW TEMPERATURES BETWEEN 35°C AND 65°C, WITH A FACTORY SETTING OF 45°C FOR OPTIMAL UNDERFLOOR HEATING PERFORMANCE. THE CONTROL KNOB ENABLES EASY TEMPERATURE ADJUSTMENT TO MAINTAIN SAFE AND CONSISTENT FLOOR HEATING.

THE HIGH-EFFICIENCY STANDARD A-RATED 7.5M CIRCULATOR PUMP DELIVERS RELIABLE PERFORMANCE WITH LOW ENERGY CONSUMPTION, MAKING IT SUITABLE FOR LARGER HEATING ZONES AND SYSTEMS WITH HIGHER FLOW REQUIREMENTS.

KEY FEATURES

• ADJUSTABLE THERMOSTATIC BLENDING VALVE (35–65°C)
• STANDARD A-RATED 7.5M PUMP WITH 5–39W POWER CONSUMPTION
• MULTIPLE OPERATING MODES INCLUDING AUTO ADAPTATION, PROPORTIONAL PRESSURE, CONSTANT PRESSURE, CONSTANT SPEED, AND PWM CONTROL
• G1 MALE SWIVEL FLAT SEAL UNIONS FOR DIRECT MANIFOLD CONNECTION
• NO MOUNTING BRACKETS REQUIRED FOR INSTALLATION
• SUPPLIED PRE-WIRED WITH 3-CORE CABLE AND 25MM GASKETS
• COMPATIBLE WITH GAS AND OIL BOILERS, HEAT PUMPS, SOLAR HEATING SYSTEMS, AND WOOD-BURNING STOVES

BENEFITS

• QUICK AND SIMPLE INSTALLATION WITH DIRECT MANIFOLD CONNECTION
• HIGHER PUMP HEAD SUPPORTS LARGER AND MORE DEMANDING UNDERFLOOR HEATING SYSTEMS
• LOW ENERGY CONSUMPTION HELPS REDUCE RUNNING COSTS
• MAINTAINS SAFE, EVEN FLOOR TEMPERATURES WHILE PROTECTING FLOOR FINISHES FROM OVERHEATING
