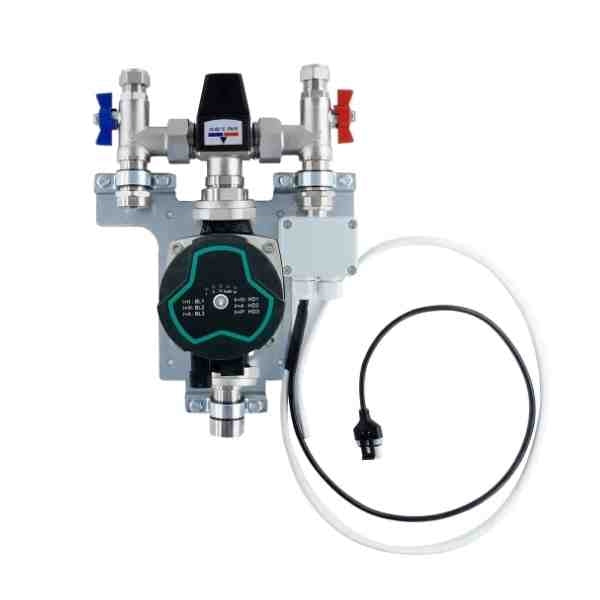

SINGLE ROOM CONTROL UNIT WITH STANDARD A RATED PUMP 7.5M HEAD

STANDARD A-RATED SINGLE ROOM UNDERFLOOR HEATING PUMP PACK – 3KW WITH 7.5M HEAD PUMP

THE STANDARD SINGLE ROOM UNDERFLOOR HEATING PUMP PACK IS A PRE-ASSEMBLED SOLUTION FOR CONNECTING A SINGLE UNDERFLOOR HEATING ZONE TO AN EXISTING CENTRAL HEATING SYSTEM. SUITABLE FOR AREAS UP TO 20M², IT COMBINES A THERMOSTATIC MIXING VALVE WITH A STANDARD A-RATED 7.5M HEAD CIRCULATOR PUMP TO PROVIDE EFFICIENT WATER CIRCULATION AND ACCURATE FLOW TEMPERATURE CONTROL.

THE INTEGRATED MIXING VALVE AUTOMATICALLY BLENDS THE WATER TEMPERATURE TO HELP PREVENT FLOOR OVERHEATING, WHILE THE HIGH-EFFICIENCY PUMP DELIVERS QUIET OPERATION WITH LOW POWER CONSUMPTION OF 5–39W.

KEY FEATURES

• STANDARD A-RATED CIRCULATOR PUMP WITH 7.5M MAXIMUM HEAD
• LOW ENERGY CONSUMPTION: 5–39W
• AUTO ADAPTATION, PROPORTIONAL PRESSURE, CONSTANT PRESSURE, CONSTANT SPEED, AND PWM CONTROL MODES
• THERMOSTATIC MIXING VALVE WITH ±2°C TEMPERATURE CONTROL
• 3KW HEATING CAPACITY
• COVERS UP TO 20M² AT 200MM PIPE CENTRES OR 15M² AT 150MM PIPE CENTRES
• COMPATIBLE WITH GAS AND OIL BOILERS, AIR SOURCE AND GROUND SOURCE HEAT PUMPS, SOLAR THERMAL SYSTEMS, AND WOOD-BURNING STOVES
• SUPPLIED WITH PRE-WIRED POWER LEAD, 25MM GASKETS, AND FITTINGS FOR STRAIGHTFORWARD INSTALLATION

BENEFITS

• COMPACT, PRE-ASSEMBLED UNIT FOR FAST INSTALLATION
• PROVIDES ACCURATE AND CONSISTENT UNDERFLOOR HEATING TEMPERATURES
• REDUCES ENERGY CONSUMPTION WITH A HIGH-EFFICIENCY A-RATED PUMP
• IDEAL FOR BATHROOMS, EXTENSIONS, CONSERVATORIES, AND OTHER SINGLE-ROOM UNDERFLOOR HEATING INSTALLATIONS
• SUITABLE FOR BOTH CONVENTIONAL AND LOW-TEMPERATURE RENEWABLE HEATING SYSTEMS
