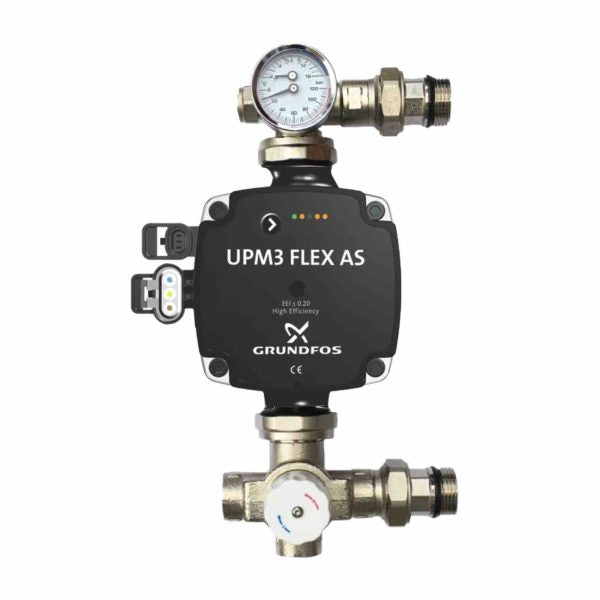

GRUNDFOS UPM3 FLEX PUMP WITH MIXING VALVE

OUR COMPACT UNDERFLOOR HEATING CONTROLLER PACK IS DESIGNED FOR SYSTEMS WITH HEAT LOADS OF UP TO 15KW AND IS SUPPLIED FULLY ASSEMBLED WITH AN A-RATED GRUNDFOS UPM3 FLEX PUMP, THERMOSTATIC MIXING VALVE, MANIFOLD ADAPTOR, AND SEALS. FEATURING G1 MALE SWIVEL FLAT SEAL UNIONS, IT CONNECTS DIRECTLY TO THE MANIFOLD FOR QUICK, HASSLE-FREE INSTALLATION WITHOUT THE NEED FOR ADDITIONAL MOUNTING BRACKETS.

THE INTEGRATED MIXING VALVE OFFERS ADJUSTABLE FLOW TEMPERATURES BETWEEN 35°C AND 65°C AND IS COMPATIBLE WITH A WIDE RANGE OF HEAT SOURCES, INCLUDING OIL AND GAS BOILERS, WOOD-BURNING STOVES, SOLAR THERMAL SYSTEMS, AND GROUND OR AIR SOURCE HEAT PUMPS.

WORKING TOGETHER, THE CIRCULATING PUMP AND THERMOSTATIC MIXING VALVE ENSURE EFFICIENT WATER CIRCULATION, EVEN HEAT DISTRIBUTION, AND PRECISE TEMPERATURE CONTROL, DELIVERING A COMFORTABLE, ENERGY-EFFICIENT UNDERFLOOR HEATING SYSTEM WHILE PREVENTING OVERHEATING.

TECHNICAL DATA

DIMENSIONS – H 276MM; W 155MM; D 125MM
FACTORY SET MIXED WATER TEMPERATURE – 45°C
MINIMUM WORKING TEMPERATURE – 35°C
MAXIMUM WORKING TEMPERATURE – 65°C
MEDIA – WATER
MANUFACTURING STANDARDS – ISO9001, ISO14001, CE, TUV SÜD, WRAS
