ACME UNDERFLOOR HEATING SOLUTIONS

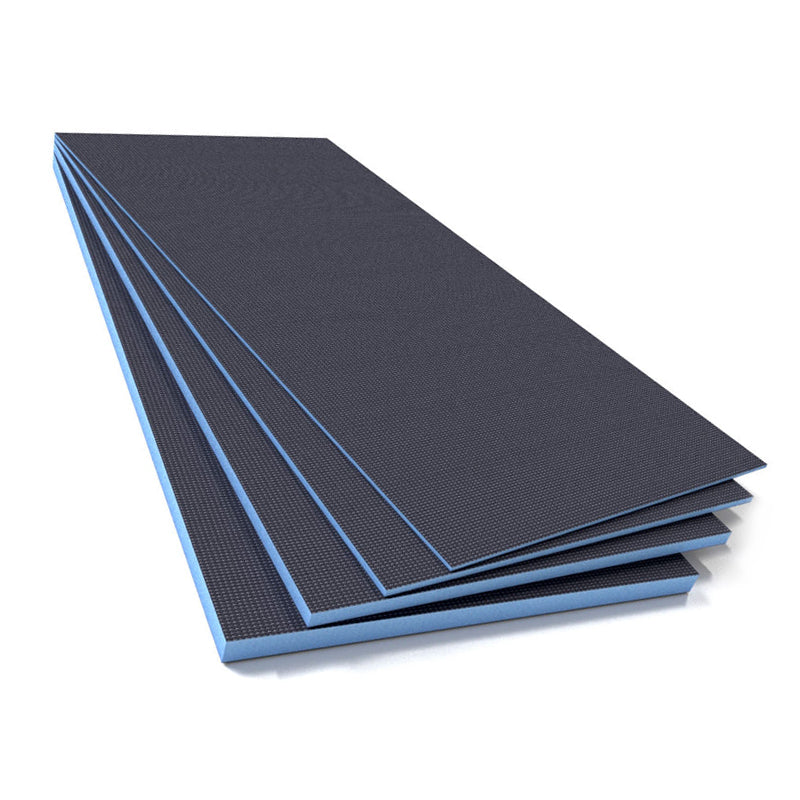

ACME TILE BECKER BOARD 6MM

ACME TILE BECKER BOARD 6MM

£13.20 GBP
£13.20 GBP
Sale Sold out
Taxes included.

  1. TILEBACKER INSULATION BOARD FOR ELECTRIC UNDERFLOOR HEATING

    THE TILEBACKER INSULATION BOARD IS A HIGH-PERFORMANCE INSULATION PANEL DESIGNED FOR ELECTRIC UNDERFLOOR HEATING AND UNDER-TILE HEATING APPLICATIONS. WITH EXCELLENT THERMAL PERFORMANCE, HIGH DENSITY, AND FULL MOISTURE RESISTANCE, IT REDUCES HEAT LOSS, IMPROVES SYSTEM EFFICIENCY, AND SHORTENS WARM-UP TIMES WHEN INSTALLED OVER CONCRETE OR TIMBER SUBFLOORS.

    MANUFACTURED FOR USE WITH ELECTRIC HEATING CABLES AND MATS, THE BOARD PROVIDES A THERMALLY EFFICIENT BARRIER THAT PREVENTS HEAT TRANSFER INTO COLD SUBFLOORS, HELPING TO LOWER RUNNING COSTS AND IMPROVE COMFORT.

    THE 100% WATERPROOF CONSTRUCTION MAKES THE TILEBACKER INSULATION BOARD SUITABLE FOR WETROOMS, BATHROOMS, CONSERVATORIES, AND OTHER TILE-FINISHED AREAS. FOR CONSERVATORY APPLICATIONS, THE BOARD SHOULD BE CONSIDERED DURING THE PLANNING STAGE TO ALLOW SUFFICIENT FLOOR DEPTH FOR THE INSULATION LAYER.

    KEY FEATURES

    • HIGH THERMAL INSULATION PERFORMANCE TO REDUCE HEAT LOSS
    • IMPROVES UNDERFLOOR HEATING EFFICIENCY AND WARM-UP TIMES
    • HIGH-DENSITY CONSTRUCTION FOR LONG-TERM DURABILITY
    • 100% WATERPROOF AND SUITABLE FOR WETROOM APPLICATIONS
    • IDEAL FOR ELECTRIC UNDERFLOOR HEATING AND UNDER-TILE SYSTEMS
    • SUITABLE FOR CONCRETE AND TIMBER SUBFLOORS
    • AVAILABLE IN MULTIPLE THICKNESSES TO SUIT DIFFERENT FLOOR BUILD-UPS

    INSTALLATION

    INSTALL THE INSULATION BOARDS BETWEEN THE SUBFLOOR AND THE HEATING ELEMENT TO CREATE A STABLE, INSULATED BASE. BOND THE BOARDS TO THE SUBFLOOR USING A SUITABLE TILE ADHESIVE BEFORE INSTALLING THE HEATING SYSTEM AND FINAL FLOOR FINISH.

    BENEFITS

    • REDUCES DOWNWARD HEAT LOSS INTO CONCRETE FLOORS
    • IMPROVES ENERGY EFFICIENCY AND REDUCES RUNNING COSTS
    • PROVIDES A SMOOTH AND PROTECTIVE BASE FOR HEATING INSTALLATIONS
    • SUITABLE FOR NEW-BUILD AND RENOVATION PROJECTS
    • SIMPLE INSTALLATION USING STANDARD TILE ADHESIVE
    • ENVIRONMENTALLY CONSIDERED AND DURABLE DESIGN

    SPECIFICATION

    • PANEL SIZE: 1200 × 600MM
    • COVERAGE: 0.72M² PER BOARD
    • U-VALUE: 2.7
    • AVAILABLE THICKNESSES: 6MM
