ACME SPIDER-FIX UFH PANEL

SPIDERFIX CASTELLATED PANEL FOR UNDERFLOOR HEATING PIPE INSTALLATION

THE SPIDERFIX CASTELLATED PANEL IS A LOW-PROFILE PIPE FIXING SYSTEM DESIGNED FOR FAST AND ACCURATE UNDERFLOOR HEATING INSTALLATIONS. MANUFACTURED FROM 100% RECYCLED INJECTION-MOULDED PLASTIC, IT PROVIDES A SECURE FIXING METHOD FOR 12MM AND 16MM UNDERFLOOR HEATING PIPE WHILST MAINTAINING A MINIMAL FLOOR BUILD-UP.

DESIGNED FOR BOTH NEW-BUILD AND RETROFIT PROJECTS, THE SLIM PROFILE MAKES THE SYSTEM IDEAL FOR APPLICATIONS WHERE FLOOR HEIGHT IS LIMITED. THE INTEGRATED CASTELLATED DESIGN ALLOWS FLEXIBLE PIPE LAYOUTS WITH ADJUSTABLE PIPE CENTRES OF 50MM, 100MM, AND UP TO 150–300MM, ENSURING CONSISTENT PIPE SPACING AND EVEN HEAT DISTRIBUTION.

FEATURES

• MANUFACTURED FROM 100% RECYCLED INJECTION-MOULDED PLASTIC
• SUITABLE FOR 12MM AND 16MM UNDERFLOOR HEATING PIPE
• LOW-PROFILE DESIGN FOR MINIMAL FLOOR HEIGHT INCREASE
• ADJUSTABLE PIPE CENTRES FROM 50MM TO 300MM
• SNAP-FIT PANEL CONNECTIONS FOR FAST INSTALLATION
• SELF-ADHESIVE BACKING FOR QUICK AND SECURE FIXING
• INTEGRATED CUTTING GROOVES AT 50MM INTERVALS FOR EASY TRIMMING

APPLICATIONS

SUITABLE FOR INSTALLATION OVER:

• CONCRETE FLOORS
• SUSPENDED TIMBER FLOORS
• INSULATION BOARDS

INSTALLATION

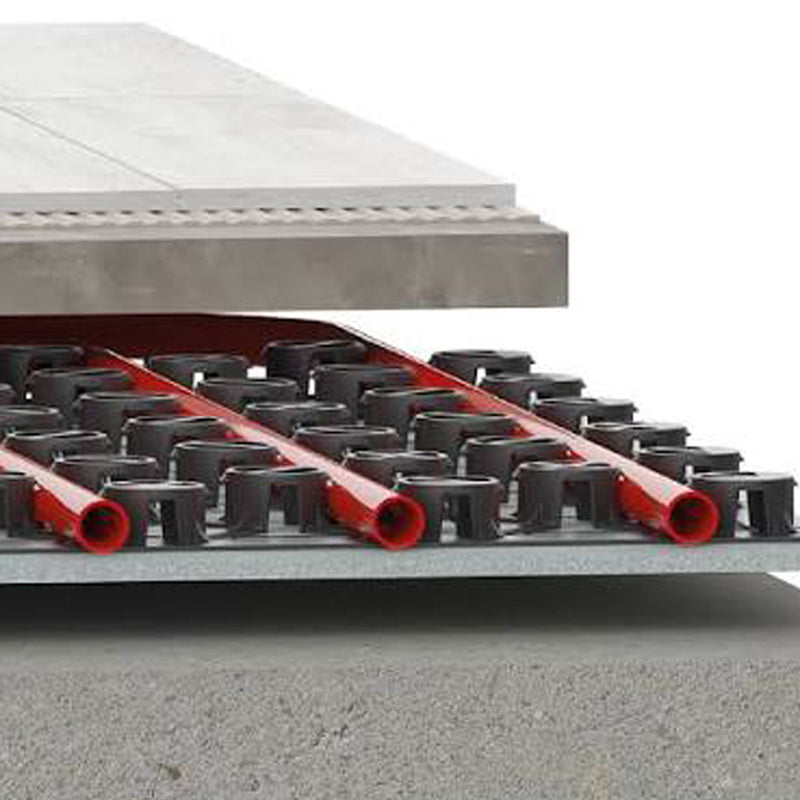

CONNECT PANELS USING THE INTEGRATED SNAP-FIT JOINTS TO CREATE A CONTINUOUS PIPE FIXING SURFACE. SECURE THE PANELS DIRECTLY TO THE SUBFLOOR USING THE SELF-ADHESIVE BACKING, THEN INSTALL THE UNDERFLOOR HEATING PIPE INTO THE CASTELLATED CHANNELS.

APPLY A FIBRE-REINFORCED SELF-LEVELLING COMPOUND OVER THE INSTALLED SYSTEM TO PROVIDE A FLAT, DURABLE SURFACE AND ENHANCE HEAT TRANSFER.

TYPICAL FLOOR BUILD-UP

• 20–25MM FOR TILE OR WOOD FLOOR FINISHES DIRECTLY OVER THE SYSTEM
• 25–35MM DEPENDING ON FLOOR FINISH, LEVELLING REQUIREMENTS, AND INSULATION CONFIGURATION

BENEFITS

• FAST AND SIMPLE PIPE INSTALLATION
• SECURE AND ACCURATE PIPE POSITIONING
• FLEXIBLE PIPE LAYOUT OPTIONS
• IMPROVED HEAT DISTRIBUTION AND SYSTEM RESPONSE
• LOW-PROFILE SOLUTION FOR HEIGHT-RESTRICTED APPLICATIONS
• REDUCED INSTALLATION TIME AND COMPLEXITY

THE SPIDERFIX CASTELLATED PANEL PROVIDES A RELIABLE, LOW-PROFILE UNDERFLOOR HEATING SOLUTION THAT COMBINES SECURE PIPE FIXING, INSTALLATION FLEXIBILITY, AND EFFICIENT HEAT PERFORMANCE.

SPIDERFIX CASTELLATED PANEL SPECIFICATION

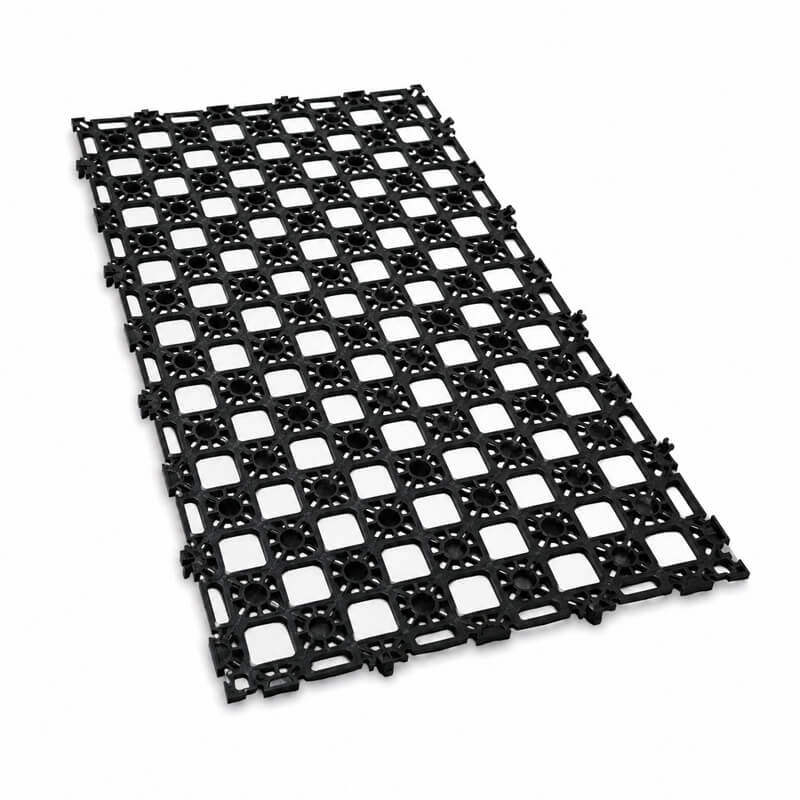

• PANEL SIZE: 1200 × 600MM
• PANEL THICKNESS: 16.5MM (SP12) / 20MM (SP16)
• PIPE COMPATIBILITY: SUITABLE FOR 12MM AND 16MM UNDERFLOOR HEATING PIPE
• PIPE SPACING OPTIONS: 50MM, 100MM, AND 150–300MM CENTRES
• MATERIAL: 100% RECYCLED INJECTION-MOULDED PLASTIC
• FIXING METHOD: INTEGRATED SELF-ADHESIVE BACKING
• PANEL CONNECTION: INTERLOCKING SNAP-FIT CLIPS
• CUTTING: PRE-FORMED CUTTING GROOVES AT 50MM INTERVALS
• SUITABLE SUBFLOORS: CONCRETE, SUSPENDED TIMBER FLOORS, AND INSULATION BOARDS
• INSTALLATION METHOD: DESIGNED FOR USE WITH FIBRE-REINFORCED SELF-LEVELLING COMPOUND

TYPICAL FLOOR BUILD-UP

• 20–25MM FOR TILE OR WOOD FINISHES DIRECTLY OVER THE SYSTEM
• 25–35MM FOR INSTALLATIONS OVER INSULATION OR WITH SOFTER FLOOR FINISHES

KEY BENEFITS

• LOW-PROFILE DESIGN FOR MINIMAL FLOOR HEIGHT INCREASE
• FAST AND SIMPLE INSTALLATION
• SECURE AND ACCURATE PIPE FIXING
• FLEXIBLE PIPE LAYOUT OPTIONS
• CONSISTENT PIPE SPACING FOR EVEN HEAT DISTRIBUTION
• SUITABLE FOR BOTH NEW-BUILD AND RETROFIT APPLICATIONS
