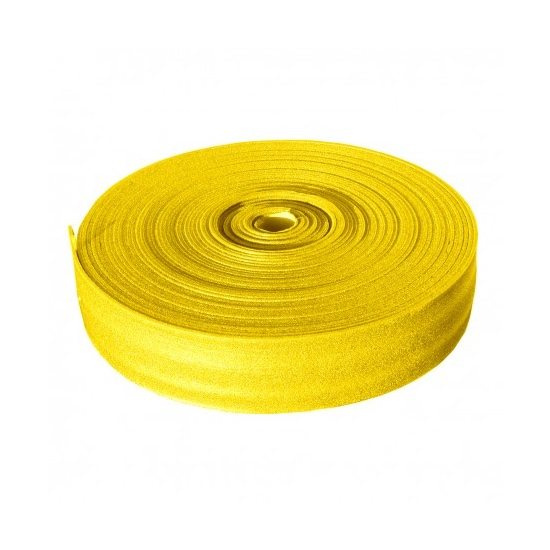

ACME EDGE INSULATION

PERIMETER INSULATION STRIP IS AN ESSENTIAL COMPONENT FOR IN-SCREED UNDERFLOOR HEATING INSTALLATIONS. IT REDUCES THERMAL BRIDGING AT THE FLOOR EDGE, MINIMISING HEAT LOSS INTO WALLS AND IMPROVING SYSTEM EFFICIENCY.

THE STRIP ALSO PROVIDES A FLEXIBLE EXPANSION GAP TO ACCOMMODATE THE NATURAL EXPANSION AND CONTRACTION OF THE SCREED DURING HEATING AND COOLING CYCLES, HELPING TO PREVENT CRACKING AND POTENTIAL DAMAGE TO UNDERFLOOR HEATING PIPES.

INSTALL THE PERIMETER INSULATION STRIP AGAINST ALL FIXED STRUCTURES WITHIN THE ROOM, INCLUDING WALLS, COLUMNS, PILLARS, STEPS, AND OTHER SOLID OBSTRUCTIONS.

FAILURE TO INSTALL SUITABLE EDGE INSULATION CAN RESULT IN SCREED MOVEMENT, CRACKING, AND POSSIBLE DAMAGE TO THE HEATING PIPEWORK. CORRECT PERIMETER STRIP SHOULD ALWAYS BE USED FOR UNDERFLOOR HEATING INSTALLATIONS. ALTERNATIVE MATERIALS SUCH AS STRIPS OF GENERAL INSULATION BOARD ARE NOT RECOMMENDED AS A SUBSTITUTE.

SPECIFICATION

• ROLL DIMENSIONS: APPROX. 5MM × 100MM × 50M
• ROLL DIMENSIONS: APPROX. 5MM × 100MM × 25M
• APPLICATION: IN-SCREED UNDERFLOOR HEATING SYSTEMS
• COLOUR: MAY VARY

KEY BENEFITS

• REDUCES THERMAL BRIDGING AND HEAT LOSS
• ALLOWS SCREED EXPANSION AND CONTRACTION
• HELPS PREVENT SCREED CRACKING
• PROTECTS UNDERFLOOR HEATING PIPEWORK
• SUITABLE FOR WALLS AND ALL FIXED ROOM PERIMETERS
