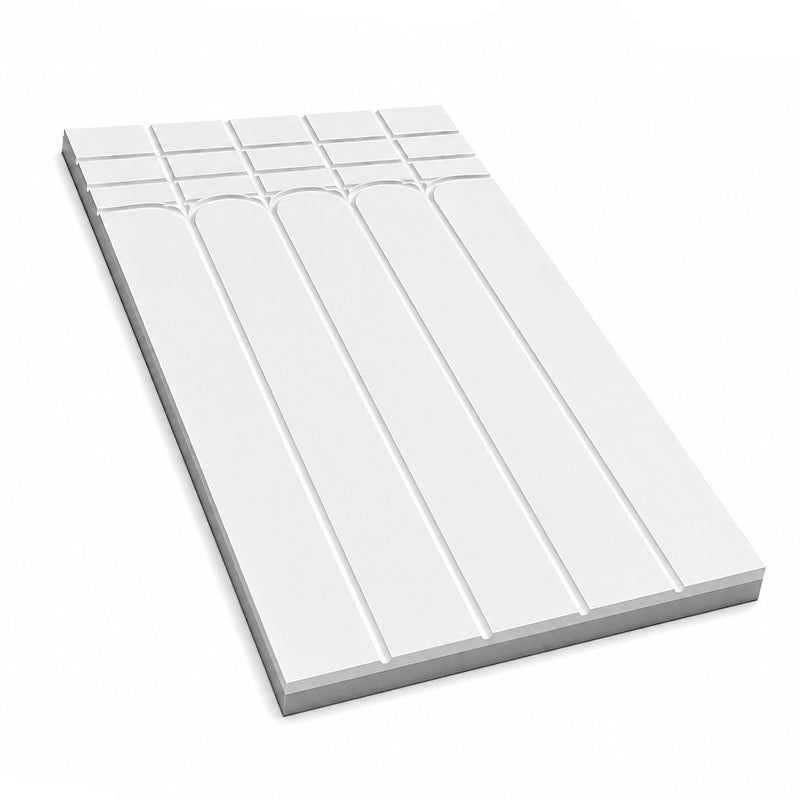

ACME 18MM XPS INSULATED OVERLAY BOARD

ACME 18MM XPS INSULATED OVERLAY BOARD

£15.00 GBP
£15.00 GBP
Sale Sold out
Taxes included.

  1. 18MM XPS300 OVERLAY BOARD FOR 12MM UNDERFLOOR HEATING PIPE

    THE 18MM XPS300 OVERLAY BOARD PROVIDES A LOW-PROFILE SOLUTION FOR WATER UNDERFLOOR HEATING INSTALLATIONS WHERE MINIMAL FLOOR BUILD-UP IS REQUIRED. MANUFACTURED FROM HIGH-DENSITY EXTRUDED POLYSTYRENE (XPS), THE BOARD OFFERS EXCELLENT THERMAL INSULATION, HIGH COMPRESSIVE STRENGTH, AND A LIGHTWEIGHT DESIGN. THE PLAIN, NON-FOIL SURFACE IS SUITABLE FOR INSTALLATIONS REQUIRING DIRECT APPLICATION OF SELF-LEVELLING COMPOUND, SCREED, OR TILE ADHESIVE.

    SPECIFICATION

    • BOARD DIMENSIONS: 1200 × 600 × 18MM
    • COVERAGE: 0.72M² PER BOARD
    • MATERIAL: HIGH-DENSITY EXTRUDED POLYSTYRENE (XPS)
    • COMPRESSIVE STRENGTH: 300KPA
    • THERMAL CONDUCTIVITY (λ): 0.034–0.035W/MK
    • SURFACE: PLAIN XPS FINISH WITHOUT ALUMINIUM FOIL HEAT-SPREADER LAYER
    • PIPE COMPATIBILITY: SUITABLE FOR 12MM UNDERFLOOR HEATING PIPE
    • PIPE CHANNELS: PRECISION ROUTED WITH 150MM CENTRES AND SMOOTH RADIUS RETURNS

    KEY FEATURES

    • LOW-PROFILE DESIGN FOR MINIMAL FLOOR HEIGHT INCREASE
    • HIGH THERMAL INSULATION TO REDUCE DOWNWARD HEAT LOSS
    • 300KPA COMPRESSIVE STRENGTH FOR RESIDENTIAL AND LIGHT COMMERCIAL APPLICATIONS
    • CLOSED-CELL, WATER-RESISTANT XPS STRUCTURE
    • LIGHTWEIGHT AND EASY TO CUT ON SITE
    • PRE-ROUTED CHANNELS FOR FAST AND ACCURATE PIPE INSTALLATION
    • NO ALUMINIUM FOIL LAYER FOR MAXIMUM INSTALLATION FLEXIBILITY
    • SUITABLE FOR DRY SYSTEMS AND SCREED-OVER APPLICATIONS

    APPLICATIONS

    SUITABLE FOR:

    • WATER UNDERFLOOR HEATING INSTALLATIONS OVER CONCRETE OR SCREED BASES
    • RETROFIT PROJECTS WHERE FLOOR HEIGHT IS LIMITED
    • INSTALLATIONS REQUIRING SELF-LEVELLING COMPOUND, SCREED, OR DIRECT TILE/WOOD FINISHES
    • APPLICATIONS WHERE AN ALUMINIUM HEAT-SPREADER LAYER IS NOT REQUIRED

    INSTALLATION

    BOND THE BOARDS TO A CLEAN, LEVEL, AND STRUCTURALLY SOUND SUBFLOOR USING A SUITABLE ADHESIVE. INSTALL PANELS IN A STAGGERED BRICK-BOND PATTERN, INSERT 12MM PEX OR PE-RT PIPE INTO THE PRE-ROUTED CHANNELS, APPLY PRIMER AS REQUIRED, THEN COVER WITH A SUITABLE SELF-LEVELLING COMPOUND OR SCREED BEFORE INSTALLING THE FINAL FLOOR FINISH.

    THE 18MM XPS300 OVERLAY BOARD PROVIDES A DURABLE, INSULATED, AND SPACE-EFFICIENT BASE FOR EFFICIENT UNDERFLOOR HEATING INSTALLATIONS.
