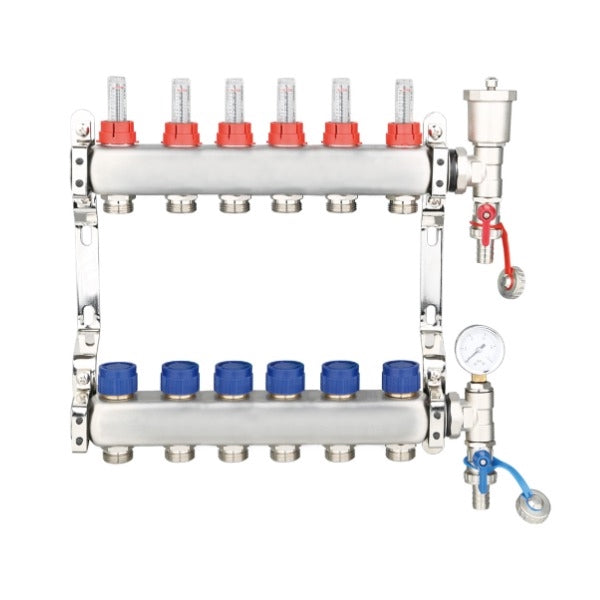

6 PORT STANDARD DESIGN UFH MANIFOLD

OUR STAINLESS STEEL MANIFOLD RANGE IS AVAILABLE IN CONFIGURATIONS FOR 2 TO 12 HEATING CIRCUITS, PROVIDING EFFICIENT DISTRIBUTION, ISOLATION, AND BALANCING FOR WARM WATER UNDERFLOOR HEATING SYSTEMS IN COMPLIANCE WITH BS EN 1264-4. EACH CIRCUIT CAN BE ACCURATELY BALANCED USING INTEGRATED FLOW METERS ON THE FLOW MANIFOLD, ALLOWING ADJUSTMENT BETWEEN 1 AND 5 LITRES PER MINUTE, WHILE MANUAL ISOLATION VALVES ON THE RETURN MANIFOLD ENABLE INDIVIDUAL CIRCUITS TO BE SHUT OFF AS REQUIRED.

THE MANIFOLD IS EQUIPPED WITH M30 × 1.5 VALVE CONNECTIONS, MAKING IT COMPATIBLE WITH MOST STANDARD THERMAL ACTUATORS, WHICH ARE AVAILABLE SEPARATELY. HIGH-QUALITY EPDM O-RING VALVE SEALS PROVIDE SMOOTH OPERATION, EXCELLENT DURABILITY, AND RELIABLE FLOW CONTROL, EVEN AT HIGHER FLOW RATES. IT FEATURES 1″ MALE THREADED FLAT-SEALING CONNECTIONS FOR THE HEAT SOURCE AND ¾″ EUROCON CONNECTIONS FOR CLAMP RING SCREW FITTINGS TO THE HEATING CIRCUITS. AN END SET WITH A ¾″ SWIVEL CONNECTION IS ALSO INCLUDED, ALLOWING FOR ISOLATION, FILLING, DRAINING, AND SYSTEM FLUSHING.

SUPPLIED PRE-ASSEMBLED ON A WALL MOUNTING BRACKET WITH LOW-NOISE PIPE CLAMPS COMPLIANT WITH DIN 4109, THE MANIFOLD CAN BE INTEGRATED WITH A VARIETY OF ADDITIONAL SYSTEM COMPONENTS, INCLUDING PUMP GROUPS, HYDRAULIC CONTROL UNITS, HEAT INTERFACE UNITS, AND OTHER COMPATIBLE ACCESSORIES.

WHAT'S INCLUDED

• FLOW MANIFOLD FITTED WITH INTEGRATED FLOW METERS FOR PRECISE CIRCUIT ADJUSTMENT
• RETURN MANIFOLD COMPLETE WITH REMOVABLE ISOLATION VALVE CAPS
• TERMINAL UNIT INCORPORATING AN AUTOMATIC AIR VENT AND FILLING VALVE
• TERMINAL UNIT EQUIPPED WITH A DRAIN VALVE AND PRESSURE GAUGE
• SUPPLIED PRE-ASSEMBLED ON A MOUNTING BRACKET WITH VIBRATION-REDUCING PIPE CLIPS
• 16MM EUROCON CONNECTOR
• 1" ISOLATION VALVE WITHOUT GAUGE (PAIR)

SPECIFICATION

6 PORT MANIFOLD – 388MM X 345MM X 82MM
