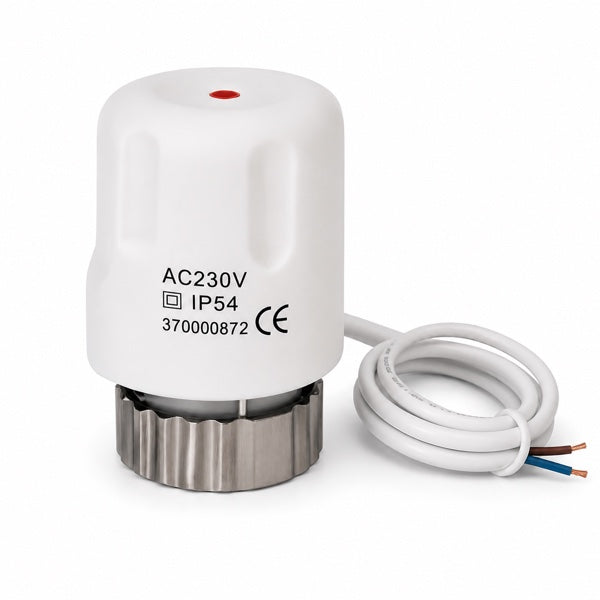

2 WIRE UFH ACTUATOR 230V

ACME UFH 2 WIRE ACTURATOR 230V

THIS PRECISION THERMAL ACTUATOR IS DESIGNED FOR UNDERFLOOR HEATING SYSTEMS, AUTOMATICALLY REGULATING ROOM TEMPERATURES BY OPENING AND CLOSING MANIFOLD VALVES ACCORDING TO THERMOSTAT SIGNALS. IT ENSURES ACCURATE TEMPERATURE CONTROL, OPTIMAL WATER FLOW, AND ENERGY-EFFICIENT PERFORMANCE IN ZONED HEATING SYSTEMS.

COMPATIBLE WITH M30 × 1.5 UNDERFLOOR HEATING MANIFOLDS, THERMOSTATIC VALVES, AND THREE-WAY VALVES, THIS COMPACT ACTUATOR PROVIDES RELIABLE CONTROL FOR RESIDENTIAL AND COMMERCIAL RADIANT HEATING APPLICATIONS.

KEY FEATURES

• NORMALLY CLOSED DESIGN FOR SAFE AND EFFICIENT HEATING CONTROL
• M30 × 1.5 THREAD COMPATIBILITY FOR WIDE MANIFOLD APPLICATIONS
• 3MM STROKE LENGTH FOR PRECISE VALVE POSITIONING
• LOW 2W POWER CONSUMPTION FOR ENERGY SAVINGS
• 2-WIRE CONNECTION FOR SIMPLE THERMOSTAT INTEGRATION
• TOOL-FREE INSTALLATION FOR QUICK AND EASY SETUP
• COMPACT, SILENT DESIGN FOR DISCREET OPERATION
• CE CERTIFIED FOR RELIABLE, LONG-LASTING PERFORMANCE

TECHNICAL DATA

• OPERATING VOLTAGE: 230V AC / 25V DC (+10% / -15%)
• FREQUENCY: 0–60HZ
• POWER CONSUMPTION: 3W (VA) DURING CONTINUOUS OPERATION
• STARTING POWER: 90W (VA)
• VERSION: NORMALLY CLOSED (NC)
• OPENING AND CLOSING TIME: APPROX. 3 MINUTES
• OVERVOLTAGE PROTECTION: VARISTOR
• APPROVALS: CE CERTIFIED
• PROTECTION CLASS: ACCORDING TO EN 60529
• CONNECTING CABLE: 1M FIXED CABLE, 2 × 0.75MM²
• AMBIENT OPERATING TEMPERATURE: 0°C TO 50°C
• MAXIMUM MEDIUM TEMPERATURE: 100°C
• STORAGE TEMPERATURE: -20°C TO +70°C
