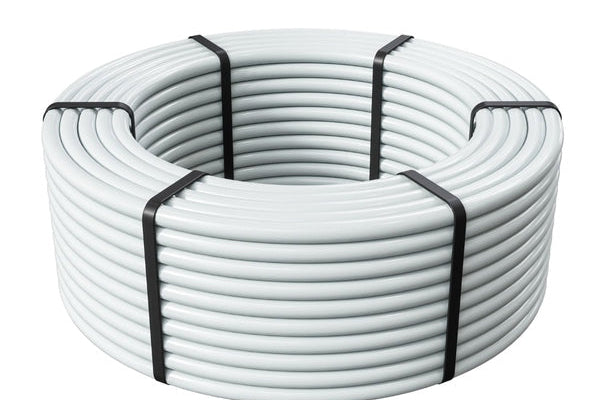

12mm x 80m PERT-AL-PERT MLCP PIPE

12MM X 80M PERT-AL-PERT MLCP UNDERFLOOR HEATING PIPE

OUR PREMIUM 12 X 1.6MM PE-RT/AL/PE-RT COMPOSITE PIPE IS MANUFACTURED TO EN ISO 9001 STANDARDS, PROVIDING EXCEPTIONAL DURABILITY, PERFORMANCE, AND RELIABILITY FOR WARM WATER UNDERFLOOR HEATING SYSTEMS.

THE 12MM PIPE IS SPECIFICALLY DESIGNED FOR ULTRA-LOW-PROFILE OVERLAY BOARDS WITH PROFILES UNDER 18MM, MAKING IT IDEAL FOR INSTALLATIONS WHERE MINIMUM FLOOR BUILD-UP IS REQUIRED. TO MAINTAIN OPTIMUM HEAT OUTPUT AND SYSTEM EFFICIENCY, LOOP LENGTHS SHOULD NOT EXCEED 80 METRES DUE TO THE SMALLER INTERNAL BORE.

COMBINING THE FLEXIBILITY OF PE-RT WITH THE STRENGTH OF ALUMINIUM, PE-RT/AL/PE-RT PIPE DELIVERS EXCELLENT PERFORMANCE FOR UNDERFLOOR HEATING APPLICATIONS AND IS ALSO SUITABLE FOR POTABLE WATER SYSTEMS.

THE INTEGRATED ALUMINIUM CORE PROVIDES AN EFFECTIVE OXYGEN BARRIER, HELPING TO PREVENT OXYGEN INGRESS THAT CAN CAUSE CORROSION AND REDUCE THE LIFESPAN OF SYSTEM COMPONENTS SUCH AS MANIFOLDS. IT ALSO PROVIDES EXCELLENT SHAPE RETENTION, ALLOWING EASY HAND FORMING WITH MINIMAL SPRING-BACK FOR QUICKER AND MORE ACCURATE INSTALLATION.

KEY FEATURES

• 5-LAYER COMPOSITE CONSTRUCTION WITH PE-RT INNER AND OUTER LAYERS AND A 0.25MM EDGE-WELDED ALUMINIUM CORE
• BUTTED-WELDED ALUMINIUM LAYER FOR ENHANCED STRENGTH AND DURABILITY
• FORM-STABLE DESIGN THAT CAN BE BENT BY HAND AND RETAINS ITS SHAPE
• EXCELLENT OXYGEN BARRIER TO HELP PROTECT SYSTEM COMPONENTS FROM CORROSION
• SUITABLE FOR WARM WATER UNDERFLOOR HEATING AND POTABLE WATER APPLICATIONS
• MAXIMUM CONTINUOUS OPERATING TEMPERATURE: 70°C
• MAXIMUM SHORT-TERM OPERATING TEMPERATURE: 85°C
• MANUFACTURED TO MEET CE AND EN ISO 9001 EUROPEAN AND INTERNATIONAL QUALITY STANDARDS.
