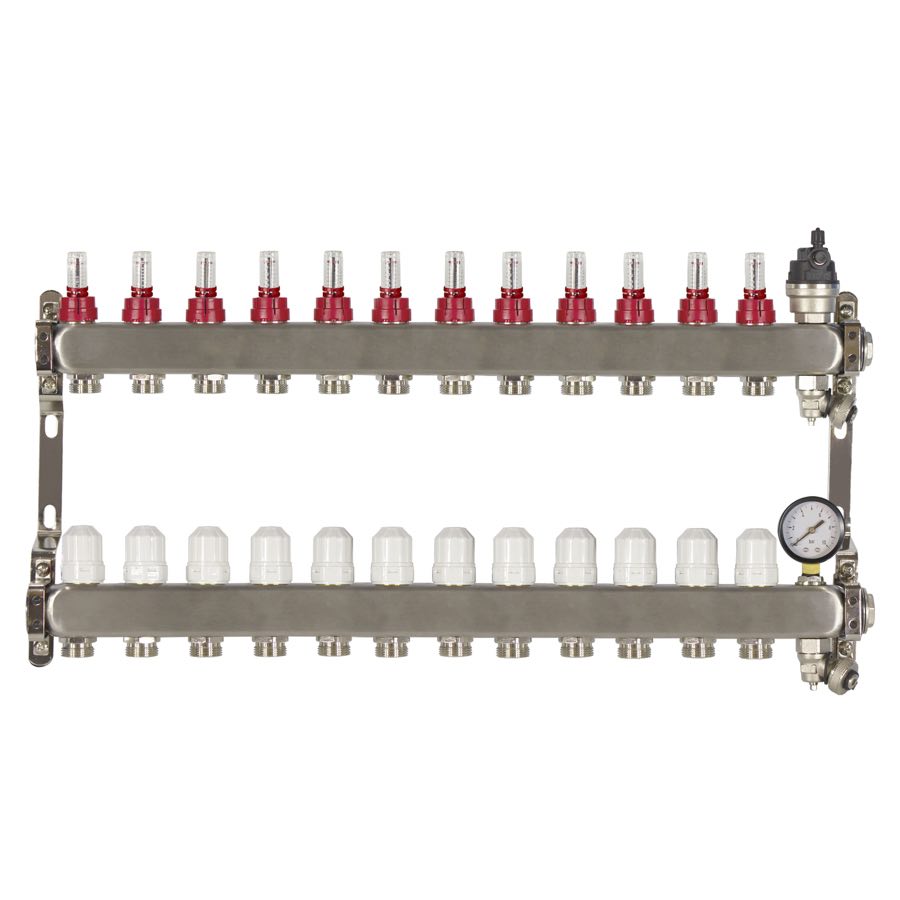

12 PORT ADVANCE DESIGN UFH MANIFOLD

ADVANCE DESIGN MANIFOLD WITH FLOW CONTROL AND BALANCING

THIS UNDERFLOOR HEATING MANIFOLD IS DESIGNED TO CONTROL, ISOLATE, AND BALANCE WARM WATER HEATING CIRCUITS IN ACCORDANCE WITH BS EN 1264-4 STANDARDS. EACH HEATING LOOP CAN BE ACCURATELY ADJUSTED BETWEEN 1 AND 5 LITRES PER MINUTE USING THE INTEGRATED FLOW METERS ON THE FLOW MANIFOLD, WHILE INDIVIDUAL CIRCUITS CAN BE ISOLATED USING THE MANUAL SHUT-OFF CAPS ON THE RETURN MANIFOLD.

KEY FEATURES

• UNIVERSAL M30 × 1.5 ACTUATOR CONNECTION – COMPATIBLE WITH STANDARD THERMAL ACTUATORS
• PRECISE FLOW REGULATION – ACCURATE ADJUSTMENT EVEN AT HIGHER FLOW RATES
• EPDM O-RING SEALS – PROVIDE SMOOTH OPERATION, LEAK RESISTANCE, AND LONG SERVICE LIFE
• 1" MALE FLAT-SEAL CONNECTIONS – SECURE CONNECTION TO THE HEAT SOURCE
• 3/4" EUROCONE CIRCUIT OUTLETS – SIMPLE AND RELIABLE PIPE CONNECTION
• INTEGRATED END SET – INCLUDES 3/4" SWIVEL CONNECTION FOR FILLING, DRAINING, FLUSHING, AND ISOLATION
• FACTORY-FITTED MOUNTING BRACKET WITH LOW-NOISE PIPE CLIPS – COMPLIANT WITH DIN 4109 FOR REDUCED OPERATING NOISE AND EASY INSTALLATION WITH PUMP UNITS, HYDRAULIC CONTROLS, AND HEAT INTERFACE SYSTEMS

INCLUDED COMPONENTS

• FLOW MANIFOLD WITH INTEGRATED FLOW METERS
• RETURN MANIFOLD WITH REMOVABLE ISOLATION CAPS
• FILLING VALVE AND AUTOMATIC AIR VENT
• DRAIN VALVE AND PRESSURE GAUGE
• PRE-INSTALLED MOUNTING BRACKET
• 16MM EUROCON CONNECTORS
• 1" ISOLATION VALVE WITH GAUGE (PAIR)

SPECIFICATION

12 PORT MANIFOLD – 676MM (W) × 365MM (H) × 90MM (D
